Waterproof Inline Switch 30A High Current Switch IP65 KCD4 Rocker Switch | FILN
Détails du produit

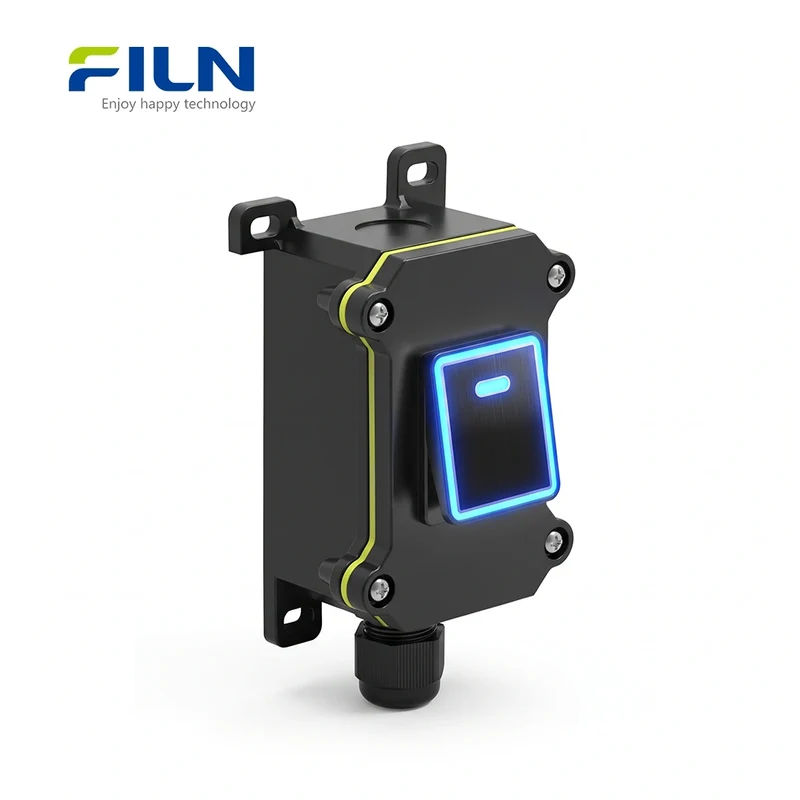

The waterproof inline switch from FILN combines a heavy-duty 30A KCD4 rocker switch with a sealed protective enclosure for electrical control in outdoor, marine, RV, automotive, industrial, and other moisture-prone environments. Unlike multi-switch waterproof boxes, this version uses a single switch opening, providing a compact inline control solution when only one high-current switch is required.
The enclosure is designed to protect the switch and wiring connection from dust, water spray, humidity, and accidental contact. With an IP65 waterproof design, PG9 cable gland, 4-pin screw terminals, and 30A high-current switching capability, this waterproof inline switch is suitable for applications where reliable switching and environmental protection need to be combined in one compact assembly.
Quick Answer: This waterproof inline switch is a single-hole waterproof switch assembly using a 30A KCD4 rocker switch. It is designed for inline electrical control where the switch, wiring terminals, and cable entry need additional protection from outdoor moisture and dust. 30AHigh-Current Switching IP65
Waterproof Protection Single
Switch Opening PG9
Waterproof Cable Gland
Ready to Buy or Request a Sample?
This waterproof inline switch is available for direct purchasing and B2B sourcing from FILN. Contact us for current pricing, samples, customization, and bulk orders.
Request Price & Sample Visit FILNWaterproof Inline Switch Drawing
The drawing below provides a dimensional reference for the waterproof switch enclosure and its installation structure. For production orders, the exact dimensional drawing of the selected single-hole configuration can be confirmed with FILN before manufacturing.
What Is a Waterproof Inline Switch?
A waterproof inline switch is an electrical switching assembly designed to be installed directly along a wiring route rather than mounted as an exposed switch on a control panel. The protective enclosure surrounds the switch and wiring area, helping reduce exposure to water, dust, humidity, and accidental mechanical contact.
This FILN version combines a 30A KCD4 rocker switch with a sealed enclosure. The single-hole configuration is particularly useful when an application needs one independent ON-OFF control instead of a multi-switch control box.
Why Use an Inline Waterproof Switch?
- Provides a protected switching point along an electrical cable or equipment wiring route.
- Helps protect switch terminals from outdoor moisture, dust, and water spray.
- Combines a high-current 30A rocker switch with a protective enclosure.
- Uses a single switch opening for a compact and simple installation.
- Suitable for equipment where a conventional exposed rocker switch is not sufficiently protected.
- Can be supplied for OEM and B2B applications with customization options.
Single-Hole Waterproof Switch Design
The main difference between this version and a double-opening waterproof switch box is the number of switch positions. This product is designed around one KCD4 rocker switch, creating a more compact control solution for equipment that only requires one ON-OFF function.
| Design Feature | Single-Hole Version |
|---|---|
| Switch Openings | 1 |
| Switch Type | KCD4 Rocker Switch |
| Switch Function | ON-OFF, 2 Position |
| Current Rating | Up to 30A |
| Protection | IP65 |
| Cable Entry | PG9 Waterproof Cable Gland |
Product Overview
The FILN waterproof inline switch is engineered around a 30A high-current KCD4 rocker switch and a protective waterproof enclosure. The switch features a stainless steel aluminum surface and can be supplied with illuminated LED options in Red, Green, Yellow, Blue, or White.

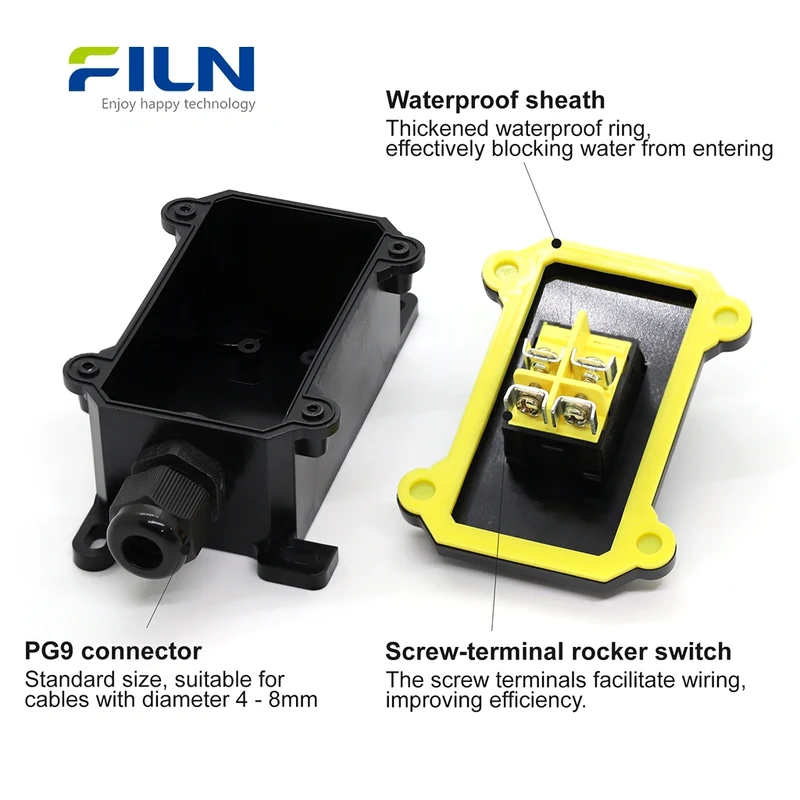

The enclosure uses a PG9 waterproof cable gland for cable entry and a screw-terminal connection system for secure wiring. The combination of the protective housing and high-current rocker switch makes the assembly suitable for outdoor equipment, marine systems, RV electrical systems, industrial equipment, agricultural machinery, and other applications where moisture protection is required.
Waterproof Inline Switch Specifications
| Product Type | Waterproof Inline Switch |
| Switch Configuration | Single-Hole / Single Switch |
| Rocker Switch | KCD4 High-Current Rocker Switch |
| Rated Current | 30A 250VAC / 18(12)A 125VAC |
| Switch Function | ON-OFF, 2 Position |
| Mounting Size | 22 × 30 mm (0.86 × 1.18 inch) |

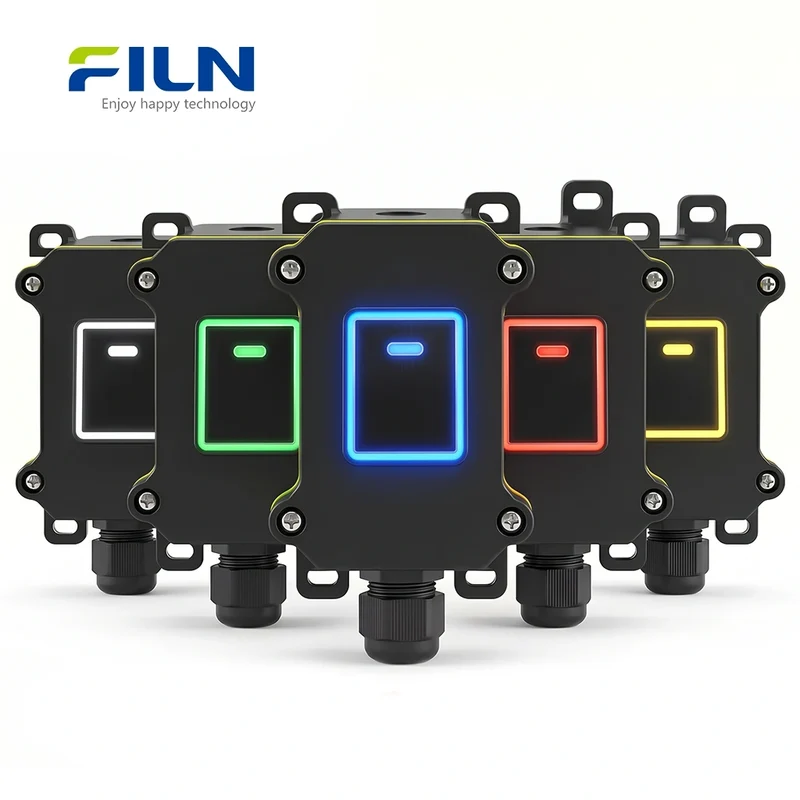

| LED Colors | Red / Green / Yellow / Blue / White |
| Terminal Type | 4-Pin Screw Terminal |
| Cable Gland | PG9 Waterproof Cable Gland |
| Protection Rating | IP65 |
| Operating Temperature | -40°C to +125°C |
Electrical Performance
| Technical Parameter | Specification |
|---|---|
| Rated Voltage / Current | 30A 250VAC / 18(12)A 125VAC |
| Initial Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ / 500VDC |
| Dielectric Strength | 1500VAC / 5mA / 60s |
| Electrical Endurance | 10,000 cycles |
| Mechanical Life | 20,000 cycles |
| Operating Temperature | -40°C to +125°C |
| Protection Degree | IP65 |
| Certifications | CE, RoHS, UL, VDE, SGS, ISO9001 |
Waterproof Inline Switch Materials
| Component | Material |
| Transparent Sheet / Light Guide | Polycarbonate (PC) |
| Switch Base / Upper Case | High-Heat PA66 / ABS |
| Waterproof Cover / Washer | Rubber |
| Terminal Pins / Spring Board | H62 Brass |
| Contact Point | AgCdO12 Silver Alloy |
| Spring / Iron Case | 72# Spring Steel / 08F Iron |
Mechanical & Environmental Characteristics
| Test Item | Conditions & Requirements |
|---|---|
| Operating Force | Measured perpendicular to operation; custom force available upon request. |
| Terminal Strength | 80N static load applied for 60s; no damage or loosening allowed. |
| Solderability | 235±5°C for 3s; 90% surface coverage required. |
| Mechanical Durability | 20,000 cycles. |
| Electrical Durability | 10,000 cycles. |
| Humidity Resistance | Designed for environments up to 95% RH under specified test conditions. |
| Temperature Resistance | -40°C to +125°C. |
Why Choose a 30A Waterproof Inline Rocker Switch?
The high-current KCD4 rocker switch used in this waterproof inline switch is designed for applications that require more current capacity than standard low-current panel switches. The upgraded structure focuses on electrical contact reliability, heat management, mechanical stability, and long-term durability.
| Core Component | Design Feature | Functional Benefit |
|---|---|---|
| Housing Structure | Split Black Housing Design | Improves structural stability and supports reliable enclosure assembly. |
| Waterproof Design | Optimized Sealing Structure | Helps protect the switch and wiring area against dust and water spray. |
| Illumination | LED Lamp | Provides visible switch status and easier operation in low-light environments. |
| Contact Material | Silver Contacts + 1mm Brass | Supports high-current switching and electrical durability. |
| Inner Holder | Larger Contact Holder | Provides a larger contact area to help manage heat during high-current operation. |
| Material Grade | Imported PA Nylon Material | Provides high mechanical strength and temperature resistance. |
Waterproof Inline Switch Applications
A waterproof inline switch is useful when electrical control needs to be positioned away from a traditional control panel or when the switch and wiring need additional environmental protection. The single-switch configuration makes this version suitable for equipment requiring one dedicated ON-OFF control.
Marine EquipmentSuitable for protected switching points on boats, marine equipment, and deck-mounted electrical systems.
RV & CamperUseful for auxiliary power, lighting, pumps, and other RV electrical circuits.
Outdoor EquipmentProvides a protected switching point for outdoor machinery, lighting, and landscape equipment.
Automotive EquipmentCan be used for auxiliary electrical accessories and high-current equipment where environmental protection is required.
Industrial MachinerySuitable for protected ON-OFF control points on machinery and electrical equipment.
Agricultural EquipmentUseful in humid or dusty working environments where exposed switches may require additional protection.
How to Install a Waterproof Inline Switch
1. Install the KCD4 Rocker Switch
The KCD4 rocker switch uses a snap-in mounting structure. Confirm the required 22×30mm mounting cut-out and align the switch with the correct ON/OFF orientation before pressing it into position.
- Confirm the 22×30mm panel opening.
- Align the KCD4 rocker switch with the opening.
- Press the switch into the opening until the retaining clips engage.
- Check that the switch is firmly seated and does not move excessively.
2. Connect the 4-Pin Screw Terminals
Route the cable through the PG9 waterproof cable gland before completing the wiring. Strip approximately 5–7mm of insulation and secure the conductors in the screw terminals.
- Insert the cable through the PG9 cable gland.
- Strip approximately 5–7mm of insulation.
- Loosen the screw terminals.
- Insert the exposed conductor into the appropriate terminal.
- Tighten the screw securely.
- Verify the circuit connection before energizing the system.

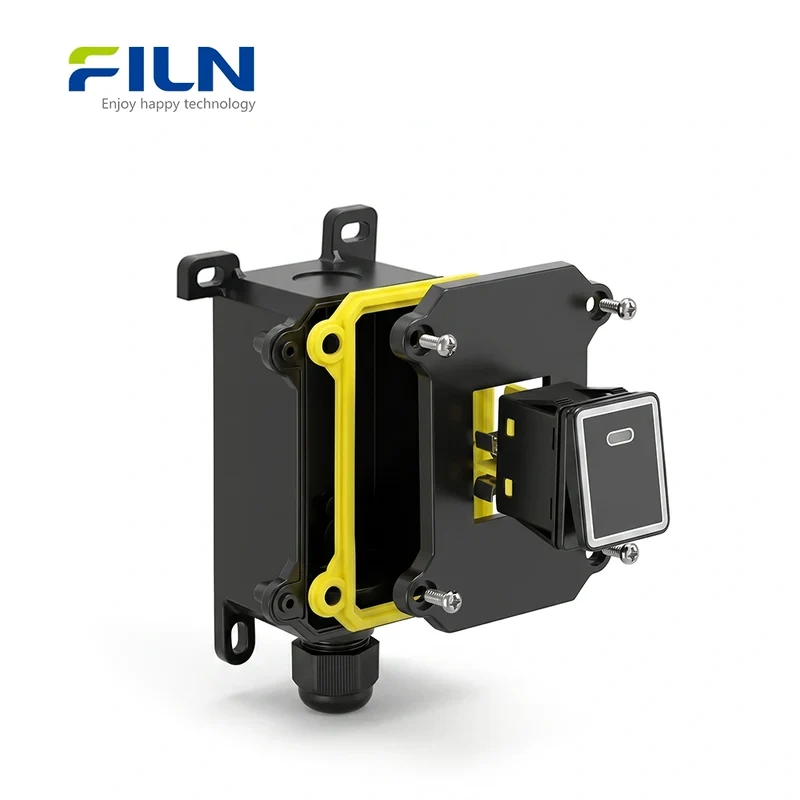

3. Seal the Waterproof Enclosure
After wiring, arrange the internal cables carefully and make sure the sealing components are correctly positioned before closing the enclosure.
- Arrange the internal wiring without pinching the cables.
- Check the enclosure gasket and sealing surfaces.
- Close the waterproof enclosure.
- Tighten the enclosure screws evenly.
- Tighten the PG9 cable gland to compress the cable seal.
- Inspect the enclosure for visible gaps before use.
Waterproof Inline Switch Wiring Guide
A 4-pin rocker switch can be configured for different illumination behaviors depending on the internal lamp connection and the selected electrical circuit. Always confirm the actual terminal configuration and lamp voltage of the supplied switch before wiring.
Option 1: LED Turns On When the Device Is Operating
In a dependent illumination configuration, the LED indicates that the switched load is active. When the rocker switch is turned ON, the load circuit is energized and the indicator illuminates.
- Input: Connect the power source to the appropriate input terminals.
- Output: Connect the switched output terminals to the load.
- Operation: The LED illuminates when the switch completes the active circuit.
Figure 1: Example wiring for LED illumination during device operation.
Option 2: LED Remains On as a Switch Finder
In an independent illumination configuration, the internal LED can remain illuminated while power is available. This configuration is useful when the switch needs to remain visible in dark environments.
- Power connection: Connect the lamp circuit according to the supplied switch's internal wiring configuration.
- Load connection: Connect the device to the switched terminals.
- Operation: The LED remains illuminated independently of the switched load when correctly configured.
Figure 2: Example wiring for independent LED illumination.
Wiring Configuration Comparison
| Configuration | Switch State | Device | LED |
|---|---|---|---|
| Dependent | OFF | OFF | OFF |
| ON | ON | ON | |
| Independent | OFF | OFF | ON |
| ON | ON | ON |
How to Choose the Right Waterproof Inline Switch
| Selection Factor | What to Check |
|---|---|
| Current Rating | Confirm that the load current is within the switch's rated capacity. This version supports up to 30A under the specified rating conditions. |
| Switch Opening | Choose the single-hole configuration when only one rocker switch is required. |
| Protection Rating | IP65 is suitable for dust-tight protection and protection against water jets under specified test conditions. |
| Cable Entry | PG9 cable gland provides a sealed cable entry for the enclosure. |
| LED Voltage | Confirm the required LED voltage and AC/DC configuration before ordering. |
| Connection Method | 4-pin screw terminals provide a secure mechanical connection for the specified configuration. |
How Does a Waterproof Inline Switch Work?
A waterproof inline switch combines three basic functions: electrical switching, cable connection, and environmental protection. The rocker switch controls the electrical circuit, while the enclosure surrounds the switch and connection area. A cable gland provides a controlled cable entry point and helps maintain the enclosure's protection against external contaminants.
In this configuration, the 30A KCD4 rocker switch provides the switching function, while the waterproof housing provides an additional physical barrier around the electrical components. This makes the assembly useful when a conventional exposed rocker switch would be difficult to protect from moisture or dust.
What Does IP65 Mean?
An IP65-rated enclosure is designed to be dust-tight and protected against water jets from any direction under the applicable test conditions. IP65 does not mean the product is designed for continuous underwater immersion. Applications involving submersion require a product with an appropriate immersion protection rating.
Why Is the Single-Hole Design Useful?
A single-hole waterproof inline switch avoids unnecessary unused switch positions. It is a practical configuration for machines, vehicles, marine equipment, outdoor devices, and electrical assemblies that require only one protected ON-OFF control.
Buy Waterproof Inline Switch Direct from FILN Factory
FILN manufactures electrical switches and indicator products for industrial, commercial, automotive, marine, and OEM applications. Customers can purchase standard products or discuss customized configurations for specific projects.
Direct Factory SupplyPurchase directly from the manufacturer. Sample Support
Request samples before bulk purchasing. LED Customization
LED voltage and color options available according to requirements. Wire Customization
Wire length and wiring configurations can be discussed for OEM projects. Connector Options
PG9 / PG11 and other connection configurations can be discussed. B2B Support
Technical assistance for product selection and project sourcing. Request a Quote Request a Sample
FILN Official Website:
www.filn.com
Sales Email:
[email protected]
Buy Online: Waterproof Inline Switch Ordering Information
If you are purchasing this waterproof inline switch for an individual project, equipment replacement, prototype, or production order, confirm the following specifications before checkout or inquiry:
- Required switch function: ON-OFF
- Required current rating: up to 30A under specified conditions
- Required LED color: Red / Green / Yellow / Blue / White
- Required LED voltage and AC/DC type
- Required cable length and wire specification
- Required connector and cable entry configuration
- Required quantity for your project
Frequently Asked Questions About Waterproof Inline Switches
Q1: What is a waterproof inline switch?A: A waterproof inline switch is a protected electrical switching assembly installed along a wiring route. It combines a switch with an enclosure and sealed cable entry to provide additional protection from dust and moisture. Q2: Is this waterproof inline switch single-hole or double-hole?
A: This version is designed as a single-hole waterproof switch assembly with one KCD4 rocker switch. It is intended for applications that require one protected ON-OFF control. Q3: How much current can the rocker switch handle?
A: The KCD4 rocker switch is rated up to 30A 250VAC under the specified rating conditions. Always verify the actual load, voltage, and product specification before installation. Q4: Is the waterproof inline switch IP65 rated?
A: Yes. The specified enclosure protection is IP65, providing dust-tight protection and protection against water jets under applicable test conditions. Q5: What type of cable gland is used?
A: The standard configuration uses a PG9 waterproof cable gland for cable entry and sealing. Q6: Does the KCD4 waterproof inline switch have an LED?
A: Illuminated versions are available with Red, Green, Yellow, Blue, or White LED options. The required LED voltage should be confirmed before ordering. Q7: Where can a waterproof inline rocker switch be used?
A: Typical applications include marine equipment, RVs, outdoor equipment, agricultural machinery, industrial equipment, automotive accessories, and other electrical systems exposed to moisture or dust. Q8: Can the waterproof inline switch be customized?
A: FILN can discuss customization options including LED voltage, LED color, wire length, connector configuration, and other OEM requirements depending on the project. Q9: What is the mounting size of the KCD4 rocker switch?
A: The KCD4 rocker switch uses a standard 22 × 30mm mounting opening. Q10: Can I buy the waterproof inline switch online?
A: Yes. Standard configurations can be purchased through the applicable FILN online product page. For custom configurations or bulk orders, customers can contact FILN directly for pricing, samples, and production requirements.
Technical Notes for Engineers and Buyers
- Current rating: Confirm the actual operating current and voltage against the switch rating before application.
- LED voltage: The LED voltage must match the electrical system and selected switch configuration.
- Waterproof protection: IP65 protection depends on correct enclosure assembly, cable gland installation, sealing components, and proper use.
- Cable entry: The cable diameter should be compatible with the selected PG9 gland.
- Wiring: Always follow the supplied terminal diagram and disconnect power before wiring.
- Environmental conditions: Confirm temperature, humidity, vibration, chemical exposure, and installation environment for the final application.
Need a Waterproof Inline Switch for Your Project?
Choose the single-hole 30A waterproof inline switch when you need one protected rocker switch for outdoor, marine, RV, automotive, or industrial equipment. Contact FILN for samples, current pricing, customization, and bulk purchasing support.
Get Price & Sample Visit FILNRelated product terms: waterproof inline switch, waterproof inline rocker switch, 30A waterproof switch, IP65 waterproof switch, waterproof switch box, single-hole waterproof switch, waterproof rocker switch, KCD4 rocker switch, 30A rocker switch, inline waterproof electrical switch, outdoor waterproof switch, marine waterproof switch, RV waterproof switch.
