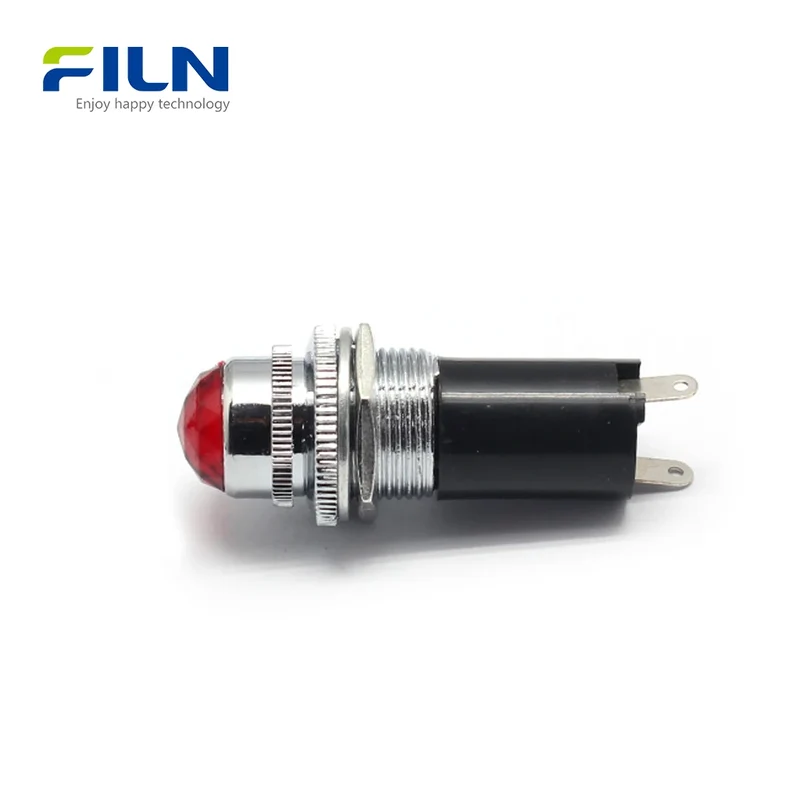

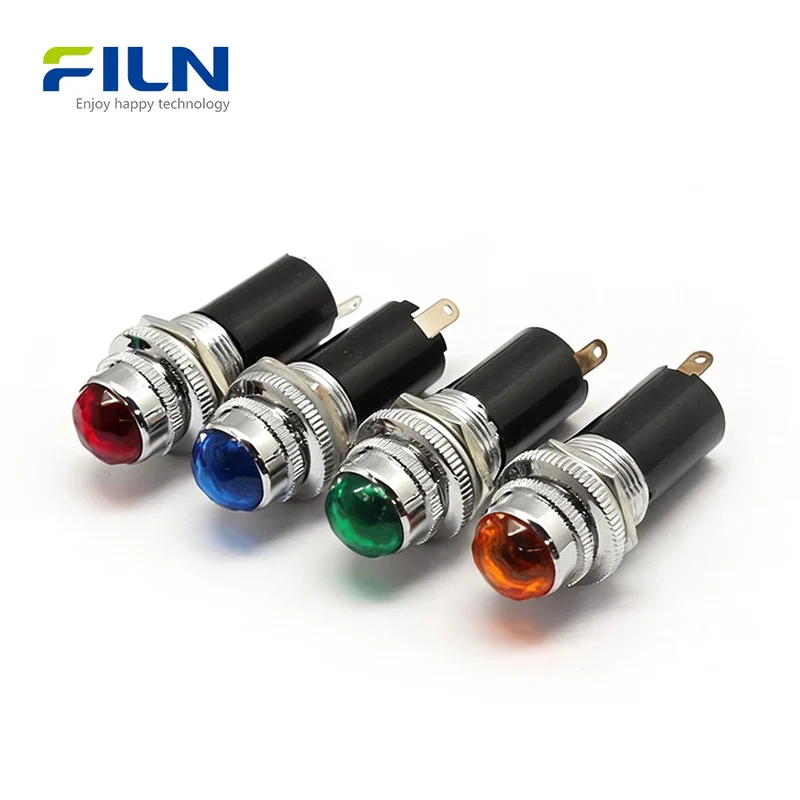

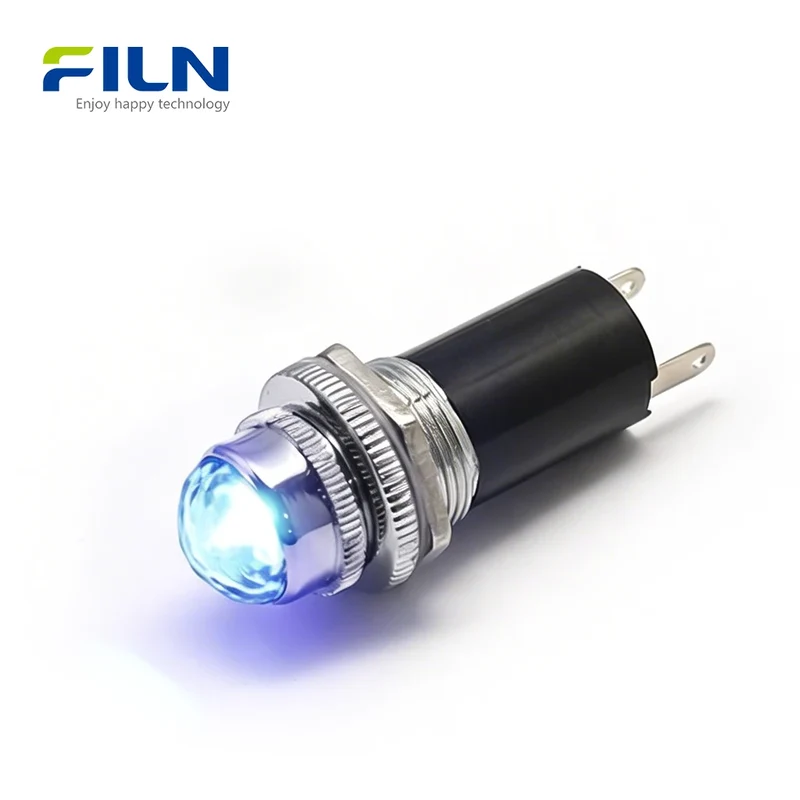

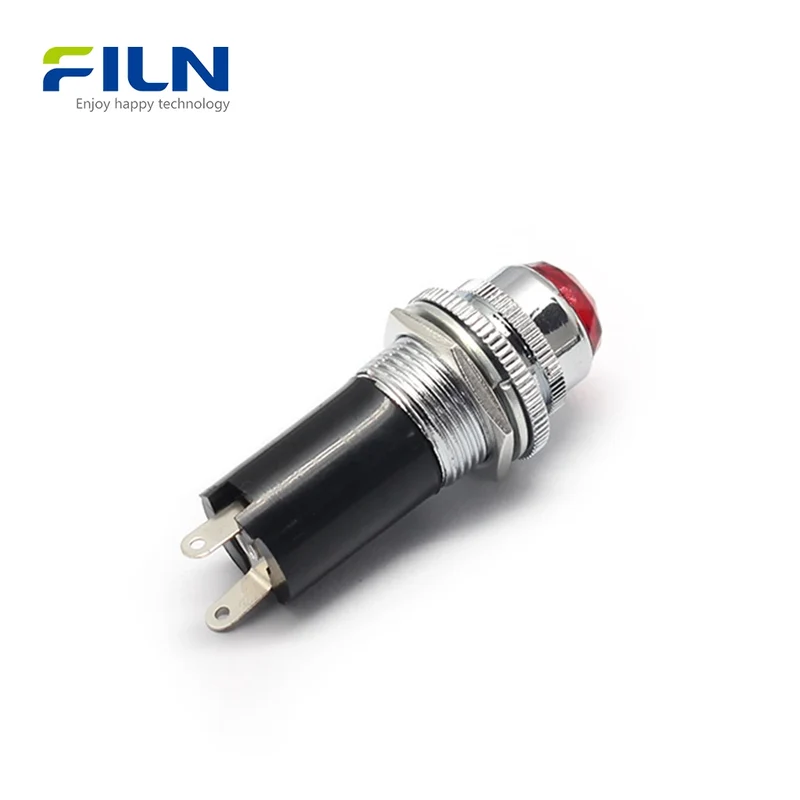

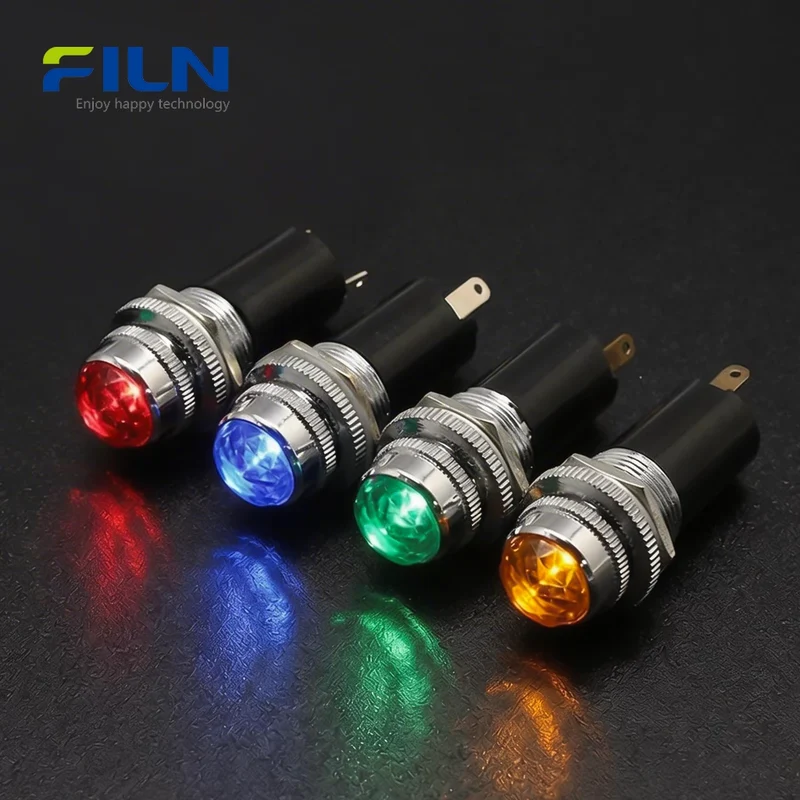

Diamond Head LED Indicator Lamp 12V 220V Pin Type Screw Mount Industrial 16mm Plastic Signal FILN

Product Overview

The Diamond Head LED Indicator Lamp is a premium 16mm plastic indicator light for sale(FL1P-16BJ-1), designed for high-visibility industrial signaling. Manufactured by FILN, a leading factory specializing in signal solutions, this lamp features a unique diamond-cut lens that enhances light refraction for superior clarity. With certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, it ensures safety and reliability in harsh environments. This industrial-automation-equipment-indicator-light is perfect for CNC machines and control panels. Its durable-pa66-plastic-indicator-lamp-housing offers excellent insulation compared to metal alternatives, while the 2-pin terminal design simplifies installation. Available in 12V, 24V, 110V, and 220V, this high-brightness-led-plastic-indicator-light-110v is ready for global distribution.

Quick Specifications

Mounting Hole	16mm (0.63 inch)
Voltage	12V, 24V, 110V, 220V (Customizable)
LED Color	Red, Green, Yellow, Blue, White
Waterproof Rating	Head IP65 (Screw Mount)
Operating Temperature	-40℃ to +80℃
Lifespan	60,000 Hours
Installation Type	Screw Thread Mounting
Wiring Type	2-pin Terminal Type (2.8mm)
Certification	ISO9001, CE, VDE, RoHS, SGS, UL

Rated Working Parameters

Rated Voltage	Customized (3V-250V)
Frequency (AC)	50～60Hz
Rated Current	≤20mA

Component Materials

Shell / Housing	PA66 Nylon
Lamp Holder	PA66 Nylon
Lampshade (Lens)	PC (Polycarbonate)
Luminescent Source	LED
Terminal	2.8mm H59 Copper
Resistance	Carbon Film Resistance

General Characteristics

Insulation and Voltage Resistance	1800V/5s
Working Life	60,000h
Relative Humidity	≤85% at +40℃
Air Pressure	86~106Kpa

Electric Property

Item	Test Condition	Requirement
Insulation Resistance	DC500V for 1 minute	≥100MΩ
Dielectric Strength	1500VAC / 5mA / 60s	No breakdown or flashover

Durability Characteristics

Continuous Working Life	50,000+ hours (Test: 30mA 1000h)

Resistant Performance

Item	Condition
High Temperature	80℃ for 96h
Low Temperature	-40℃ for 96h
Moisture Resistance	40℃ 90-95%RH for 96h

Key Features

• Diamond-Head-Style-LED-Pilot-Lamp: Unique aesthetics and superior light dispersion.
• LED High Brightness: Utilizes premium LED chips for long-range visibility.
• 2-Pin Terminal Design: Faster and more secure than traditional soldering.
• Industrial Grade Reliability: Made from flame-retardant PA66 material.
• IP65 Waterproof: Safe for use in humid and dusty environments.

Applications & Signal Meanings

This red-green-yellow-blue-white-indicator-lamps set serves specific safety functions:

• Red: Emergency or danger alert.
• Green: Normal operation or system ready.
• Yellow/Amber: Warning or standby mode.
• Blue: Specific operator instructions or resets.
• White: Power status monitoring.

Installation Guide (Screw Mount)

1. Drill a 16mm hole on the control panel.
2. Insert the screw-mount-plastic-indicator-light-220v from the front of the panel.
3. Tighten the hex nut from the back to secure the lamp.
4. Connect the 2.8mm female terminals to the 2-pin pins.

What Is a Diamond Head LED Indicator Lamp?

A Diamond Head LED Indicator Lamp is a specialized visual signaling device used in industrial environments to communicate machine status to operators. Unlike flat-head lamps, the "diamond" cut allows light to be visible from multiple angles. The use of PA66 plastic makes these indicators lightweight, corrosion-resistant, and provides superior electrical insulation. Compared to wire-lead types, the 2-pin-terminal-plastic-led-signal-lamp design allows for quick maintenance—simply unplug the terminal rather than cutting wires.

Factory Direct Supply

FILN is a professional manufacturer offering filn-plastic-indicator-light-factory-customization. We provide:

• Customized Voltage (3V to 380V)
• Custom Wire Lengths & Connectors
• Fast Global Shipping (DHL/FedEx/UPS)

Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: Is this plastic indicator light for sale with different voltages?
A1: Yes, we offer 12V, 24V, 110V, and 220V standard models, with customization available. Q2: What is the advantage of the 2-pin terminal over wire leads?
A2: The 2.8mm pin terminal allows for faster plug-and-play installation and easier replacement. Q3: Can I use this in an outdoor control box?
A3: Yes, the head is IP65 rated, making it splash-proof and dust-proof for outdoor use. Q4: Does FILN provide bulk discounts for 16mm plastic indicator lights?
A4: As a direct factory, we provide wholesale pricing for large industrial orders. Q5: What certifications does this product carry?
A5: It is fully certified by UL, CE, RoHS, and VDE.
